When JavaSoft released the Java programming language and runtime system, I don't think it quite realized the impact it would have on the software development community. The explosion of the Web and the need for a solid way to bring it interactivity created the perfect climate for an innovative technology like Java. When JavaSoft regrouped and started realizing the full potential of Java, it began planning a host of related technologies aimed at dealing with various issues facing software developers today. One of these technologies is JavaBeans, which is JavaSoft's answer to the need for a comprehensive software component technology.
JavaBeans makes a concerted effort to address the multitude of challenges that
must be overcome by a high-power software component technology. The fact that it
is based on the Java environment is but one reason JavaBeans has more than a good
chance of becoming a hit with the software development community. Another significant
advantage JavaBeans has as a component
technology is that it was developed entirely from scratch with no limitations imposed
from a prior technology, except maybe from Java. In other words, JavaBeans is a completely
new component technology specifically designed to deal with the problems software
developers face today.
In this chapter, you learn about the following:
Before getting into the details of JavaBeans, it's important to understand what JavaSoft wanted to accomplish by developing a component technology for Java. You might already be thinking about the many benefits provided by software components in general, about which you learned in Chapter 1, "Software Component Basics." However, now focus instead more on JavaSoft's specific plan to couple a component technology with Java. This plan can probably best be summarized by JavaSoft's own JavaBeans mission statement: "Write once, run anywhere, reuse everywhere."
This mission statement cuts through all the complexities surrounding component software and delivers a very simple, concise, and elegant set of requirements for the JavaBeans technology. To better understand exactly what the architects at JavaSoft have in mind, examine each part of this statement in more detail.
No, the folks at JavaSoft aren't referring to kids writing home from summer camp. They actually are referring to the issue of software development and how programmers all too often have to rewrite code when they decide to make changes. JavaSoft is suggesting that a well-developed software component technology should fully encourage code to be written once and not require rewrites to add or improve functionality. Adhering to this premise, JavaBeans should provide a practical means of adding and improving functionality in an existing code base without reworking the original code.
This goal of writing JavaBeans components once, in addition to making sense in terms of development resources, also makes perfect sense in terms of version control. This encourages developers to incrementally make changes to components instead of rewriting significant portions from scratch. The result is a steady progression of functionality, which in turn dictates a more consistent evolution of a component through increasing versions.
This statement doesn't refer to what you tell the cat after putting it outside. Instead, it refers to the capability of JavaBeans components to be executed (run) in any environment. What this statement really boils down to is the requirement for JavaBeans components to be cross-platform. You learned in Chapter 1 how a software component technology simply must be cross-platform to have a realistic chance of succeeding in the software climate of today and in the future. Fortunately for JavaBeans, cross-platform support comes easily because it is based on Java.
The "run anywhere" statement doesn't just refer to JavaBeans components executing on different platforms, however, but also to execution across distributed network environments. You learned in Chapter 1 about the importance of distributed computing support in a component model. This part of the mission statement also addresses the need for JavaBeans to support distributed computing in some way.
Sorry, but I don't have a cute joke for this part of the JavaBeans mission statement, so I'll get straight to the point. This part of the statement refers to the capability for JavaBeans components to be reused in many different scenarios including (but not necessarily limited to) applications, other components, documents, Web sites, and application builder tools. This is perhaps the most critical part of the mission statement because it drives home the point that JavaBeans components should be capable of being used in a wide range of situations. Furthermore, this requirement meets the primary goal of software components in general, which is code reuse.
Now that you know the fundamental ideas surrounding JavaSoft's drive to develop a component technology, it's time to move on to some of the specific goals it pursued in making JavaBeans a reality. The primary design goals for JavaBeans are summarized by the following list of requirements for JavaBeans components:
JavaSoft felt it imperative that JavaBeans meet all of these goals in order to be taken seriously as a component technology. Fortunately, it accomplished these goals and succeeded in making JavaBeans a major contender for charting the future of software components. Now take a closer look at how each of these goals was met.
The first requirement of JavaBeans to be very compact is based on the fact that JavaBeans components often will be used in distributed environments in which entire components might be transferred across a low-bandwidth Internet connection. Clearly, components must be as compact as possible to facilitate a reasonable transfer time. The second part of this goal relates to the ease with which the components are built and used. Imagining components that are easy to use is not such a stretch, but creating a component architecture that makes building components easy is a different issue altogether. Existing attempts at component software often have been plagued by complex programming APIs that make it difficult for developers to create components without serious brain strain. Therefore, JavaBeans components must be not only easy to use, but also easy to develop. This is a critical requirement for component developers because it means less ulcers and more time to embellish components with interesting features.
JavaBeans components are based largely on the class structure already in use with traditional Java applet programming, which is an enormous benefit to those people heavily investing time and energy in learning Java. This has the positive side effect of making JavaBeans components very compact, because Java applets already are very efficient in terms of size. Even though the goal is for JavaBeans components to be as compact as possible, this is in no way a limitation toward creating complex and potentially bulkier components should the need arise.
The second major goal of JavaSoft in creating JavaBeans was to make it fully portable, the importance of which you learned in Chapter 1. The JavaBeans API coupled with the platform-independent Java system on which it is based together comprise the platform-independent component solution alluded to earlier in this chapter. As a result, developers don't need to worry about including platform-specific libraries with their Java applets. The end result will be reusable components that unify the world of computing under one happy, peaceful umbrella. OK, maybe that's asking a little too much--I'll settle for just being able to develop a component and have it run unmodified on any Java-supportive system.
The existing Java architecture already offers a wide range of benefits easily applied to components. One of the more important, but rarely mentioned, features of Java is its built-in class discovery mechanism, which enables objects to interact with each other dynamically at runtime. This results in a system in which objects can be integrated with each other independently of their respective origins or development history. The class discovery mechanism is not just a neat feature of Java, it is a necessary requirement in any component architecture. It is fortunate for JavaBeans that this functionality is already provided by Java at no additional cost, meaning that no extra overhead is required to support it. Other component architectures have had to implement complex mechanisms to achieve the same result.
Another example of JavaBeans inheriting existing Java functionality is persistence, which is the capability for an object to store and retrieve its internal state. Persistence is handled automatically in JavaBeans by way of the serialization mechanism already present in Java. Alternately, developers are free to create their own customized persistence solutions whenever necessary.
New Term: Serialization is the process of storing or retrieving information through a standard protocol.
Another design goal of JavaBeans relates to design-time issues and how developers build applications using JavaBeans components. The JavaBeans architecture includes support for specifying design-time properties and editing mechanisms to facilitate visual editing of JavaBeans components. The result is that developers are able to use visual application builder tools to assemble and modify JavaBeans components in a seamless fashion, much like existing visual development tools on the Windows platform work with components such as VBX or OCX controls. In this way, component developers specify the way in which the components are to be used and manipulated in a development environment. This feature alone will officially usher in the use of professional application builder tools and significantly boost the productivity of application developers.
Although it is not a core element of the JavaBeans architecture, support for distributed computing is a major issue with JavaBeans. Because distributed computing requires relatively complex solutions attributed to the complex nature of distributed systems, JavaBeans leverages the use of external distributed approaches based on need. In other words, JavaBeans enables developers to use distributed computing mechanisms whenever necessary, but it doesn't overburden itself with core support for distributed computing. This might seem like some of the folks at JavaSoft are just being lazy, but in fact it is this design approach that enables JavaBeans components to be very compact. This is due to the fact that distributed computing solutions inevitably require a great deal of overhead.
JavaBeans component developers have the option of selecting a distributed computing
approach that best fits their needs. JavaSoft provides a distributed computing solution
of its own in the Java Remote Method Invocation (RMI) technology, but JavaBeans developers
are in no way handcuffed to this
solution. Other options include both CORBA and Microsoft's DCOM, among others. The
point is that distributed computing has been purposely left out of JavaBeans to keep
things tight while still enabling developers who require distributed support a wide
range of options. You learn more about how JavaBeans relates to distributed component
technologies such as DCOM and CORBA in Chapter 15, "Advanced JavaBeans."
Even though I've hopefully made a clear distinction between the two up to this point, a common source of confusion about JavaBeans is the relationship between it and Java. To be fair, there certainly is some justification to this confusion. Hasn't Java been touted as an object-oriented technology capable of serving up reusable objects? Yes and no. Java certainly enables you to build reusable objects, but there are few rules or standards governing how these objects interact with each other. JavaBeans builds on the existing design of Java by specifying a rich set of mechanisms defining interactions between objects, along with common actions most objects will need to support, such as persistence and event handling.
Although the current Java component model works well, it is relatively limited in regard to delivering true reusability and interoperability. At the object level, there really is no straightforward mechanism for creating reusable Java objects that can interact with other objects dynamically in a consistent fashion. The closest thing you can do in Java is to create applets and try to enable them to communicate with each other on a Web page, which isn't a very straightforward task. JavaBeans provides the framework by which this communication can take place with ease. Even more important is the fact that JavaBeans components can easily be tweaked via a standard set of well-defined properties. Basically, JavaBeans merges the power of full-blown Java applets with the compactness and reusability of Java AWT (Advanced Windowing Toolkit) components such as buttons.
JavaBeans components aren't limited to visual objects such as buttons, however. You can just as easily develop non-visual JavaBeans components that perform background functions in concert with other components. In this way, JavaBeans merges the power of visual Java applets with non-visual Java programs under a consistent component framework.
NOTE: Even though you learned about them in Chapter 1, let me reiterate what a non-visual component is: It is any component that doesn't have visible output. When you think of components in terms of Java AWT objects such as buttons and menus, this might seem a little strange. However, keep in mind that a component is simply a tightly packaged program and has no specific requirement of being visual. A good example of a non-visual component is a timer component, which fires timing events at specified intervals. Timer components are very popular in other component development environments such as Microsoft Visual Basic.
You can use a variety of JavaBeans components together in application builder tools without necessarily writing any code. This capability to use a variety of components together regardless of their origin is a major enhancement to the current Java model. You certainly can use other pre-built objects in Java, but you must have an intimate knowledge of the object's interface at the code level. Additionally, you must integrate the object into your code programmatically. JavaBeans components expose their own interfaces visually, enabling you to edit their properties without programming. Furthermore, you can use a visual editor to simply "drop" a JavaBeans component directly into an application without writing any code. This is an entirely new level of flexibility and reuse not previously attainable in Java alone.
New Term: An interface is a set of public methods used to interact with a component.
At this point, you've learned a fair amount about JavaBeans as a technology and what problems it is aimed at solving. However, you haven't really learned any details about JavaBeans components themselves. The time has come to get down to business and find out some specifics about what a JavaBeans component is made of. First, let me clarify a little different terminology that is sometimes used for JavaBeans: A JavaBeans component can also be referred to as a "bean" or a "JavaBean." Therefore, from here on, note that "bean," "JavaBeans component," and "JavaBean" all refer to the same thing. (Hey, variety keeps things interesting!) Also, keep in mind that "JavaBeans" usually refers to the component technology itself, as opposed to multiple components.
OK, so JavaBeans as a technology answers a lot of hopes and expectations as a
component software solution, but of what is a bean comprised? A bean, like an object
in any object-oriented environment, is comprised of two primary things: data and
methods that act on this data. The data part of a bean completely describes the state
of the bean, whereas the methods provide a means for the bean's state to be modified
and for actions to be taken accordingly. Figure 2.1 shows the two fundamental parts
of a bean.

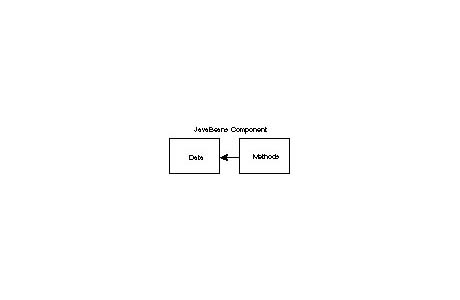

Figure
2.1. The fundamental parts of a JavaBeans
component.
Like a normal Java class, a bean is capable of having methods with different types
of access. For example, private methods are accessible only within the internals
of a bean, whereas protected methods are accessible both internally and in derived
beans. The methods with the most accessibility are public methods, which are accessible
internally, from derived beans, and from outside parties such as applications and
other components. Accessible means that an application is capable of calling any
of a component's public methods. Public methods have a unique importance to beans
because they form the primary means by which a bean communicates with the outside
world.
NOTE: A bean also communicates with the outside world through events,
which are generated when the internal state of the bean changes. Events are handled and responded to by interested outside parties (event listeners) such
as applications.
A bean's public methods are often grouped according to their function. These functionally
similar groups of public methods are also known as interfaces. A bean exposes its
functionality to the outside world through these interfaces. Interfaces are important
because they specify the protocol by which a particular bean is interacted with externally.
A programmer need only know a bean's interfaces to be able to successfully manipulate
and interact with the bean. Figure 2.2 shows how interfaces expose a bean's functionality
to the outside world.

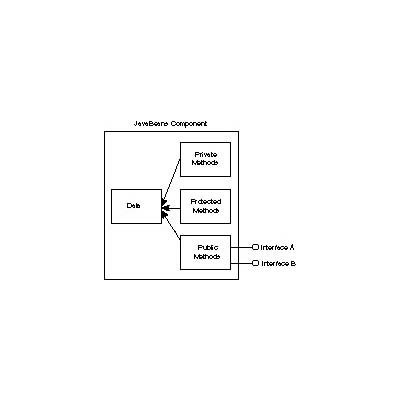

Figure
2.2. The relationship between interfaces
and methods in a JavaBeans component.
Although beans are expected to provide support for facilities such as persistence
and application builder tool integration, all beans ultimately boil down to data
and methods. These facilities are supported in the form of additional methods, data,
and interfaces, which are themselves groups of methods. Therefore, no matter how
complex a bean looks on the outside, just keep in mind that it is ultimately a combination
of data and methods deep down. How simple!
The last area to cover in this first tour of JavaBeans is how beans are used in practical scenarios. Because of their adherence to JavaSoft's goal of "reuse everywhere," beans are capable of being used in several different ways. By going through several different bean use scenarios, you'll get a better idea of how they fit into the software development process in general. The two primary development use scenarios for beans are as follows:
In this scenario, JavaBeans components are used with a visual application builder tool to construct an application. The developer must purchase the builder tool along with whatever beans he wants to use. Of course, if he's crafty enough he can write his own beans or download freeware beans developed by others.
The next step is for the developer to lay out the application visually using the
builder tool in conjunction with the beans. When the visual aspects of
the application are all layed out and the appropriate beans are placed correctly,
the developer can customize the beans. He edits the beans' properties using visual
property editors supplied by the beans themselves, which are invoked by the builder
tool. At this point, the developer also connects the beans to each other and the
application by wiring events to appropriate handler routines. Again, this process
is primarily performed in a visual fashion by virtue of the builder tool. I say "primarily"
because it is usually necessary to write some code in the event handling routines.
When this step is completed, the developer can test everything and iron out the kinks.
When he's happy with the outcome, he simply packages up the application along with
the beans and distributes them together as one physical unit.
Note: Understand that I use the term application in a general sense throughout this discussion. In Java programming, an application is a stand-alone Java program, as opposed to an applet, which is a Java program that runs within the confines of a Web browser. In this discussion, and throughout most of this book, the term application has a more general meaning and refers to both types of programs.
To summarize, the basic steps required to build an application with JavaBeans components using an application builder tool follow:
As you can see, the entire development process described requires very little programming. Using beans in this way is very convenient because it alleviates many of the drudgeries of programming by putting a visual spin on the challenge of application development. Even though many of these conveniences are provided by the builder tool itself, they wouldn't be possible without the internal support provided by the beans. For example, the builder tool must be able to determine what features a bean provides, which is carried out by the introspection facilities of the JavaBeans component model. Also, the beans are responsible for providing a visual property editor to enable themselves to be edited and customized.
This scenario isn't quite as rosy as the previous one, but just as much can be
accomplished. In this handwritten scenario there is no fancy application builder
tool and nothing is done visually. Instead, all the code for the application is written
by hand, including the integration of beans. This scenario corresponds with a developer
using the standard Java Developer's Kit (JDK) provided by JavaSoft, which includes
a command-line compiler and debugger. These tools are not fancy, but they are free.
Even though the tools themselves are free, the developer still is responsible for
coming up with beans to use in building
the application; he is free to buy, borrow, or develop his own beans, just as in
the first scenario.
The developer begins laying out the application by writing code to create and position the beans appropriately. With the beans created and positioned, the developer then moves on to customizing the beans by writing code that calls various methods that modify the properties of the beans. Calling these methods has the same effect as visually editing a bean with a property editor--you be the judge of which approach sounds easier for the developer.
When the beans are customized, the developer connects the beans to the application
via event handlers. To accomplish this, he must write code to register each event
listener with the appropriate component so that event
notifications can be routed. He then must write code for the event handlers themselves.
To be fair, the visual approach usually requires the event handlers to be written
as well, but the event listener registration is typically handled automatically.
When the beans are connected and everything is tested, the developer can package
up the beans with the application and distribute the results.
To summarize, the basic steps required to build an application by hand with JavaBeans components follow:
This development scenario differs from the first scenario primarily in that everything is done by writing code. Although nothing is wrong with this approach, replacing handwritten code with more visual techniques generally results in a more rapid and intuitive development process. Even so, some developers still are more comfortable getting dirty in the details of handwritten code, which is perfectly fine. The beauty of JavaBeans is that it fully enables and even encourages the existence of both scenarios. With JavaBeans, there's something for everyone!
This chapter introduced you to JavaBeans, JavaSoft's software component technology built upon the rapid success and many benefits of Java. You began the chapter by learning about the fundamental criteria JavaBeans had to meet as specified in JavaSoft's concise mission statement: "Write once, run anywhere, reuse everywhere." This statement succinctly presents the ideal aspirations of any component model. The fact that JavaSoft chose this statement is testament to its desire to deliver a complete software component solution. You examined each part of this statement in this chapter and how it applies to JavaBeans.
You then moved on to the specific design goals for JavaBeans, which provide perhaps the best summary of the technology as a whole. Each of these design goals led directly to the development of a major part of the JavaBeans API, about which you learn in Chapter 3, "The JavaBeans API at a Glance." By understanding the goals under which JavaBeans was developed, you are well on your way to understanding the technology as it exists in its final form.
You also learned in this chapter how JavaBeans relates to Java, which is an interesting topic because of the way in which JavaBeans is built on top of Java. From there, you learned the basic structure of a JavaBeans component, which was probably familiar to you from the structure of Java classes. You learned that JavaBeans components are internally composed of data and methods, which is to be expected because JavaBeans is fundamentally still an object-oriented technology. You finished up the chapter by learning about a couple of development scenarios involving JavaBeans components, which gave insight into the options developers have in how they use JavaBeans.
Although this chapter didn't go into painstaking detail, it hopefully gave you a solid introduction to JavaBeans components. In the next chapter you go another level deeper by learning about the JavaBeans API and what is has to offer at the programming level.
