by Mark Wutka
Many companies get their feet wet on the Web by creating a static display-only page. This may be nice from a marketing perspective, but Web surfers find little use for these pages. The real power of the Web is that you can provide a way for customers to interact with your business.
When customers can do business with your company over the Web, they can conduct business at any time of day, from anywhere in the world. They don't have to wait for a salesman, they aren't stuck on hold waiting for an operator-you can give them all the information they need and the power to place orders right at their fingertips.
One of the reasons more companies aren't operating this way is that so many companies have older systems that aren't very Web-friendly. IBM has begun to address this problem for many of their customers, providing Web server software for the AS/400 line, and gateway software to access CICS systems. Chapter 34, "Interfacing with CICS Systems," shows you ways to access a CICS system.
If your company has a legacy system that needs to be accessed from the Web, you can use the encapsulation techniques from Chapter 32, "Encapsulating Legacy Systems," to help you.
When you want to connect a legacy system to the Web, you will probably want the Web server to act as a client to the legacy system. You must first figure out what kind of things you want to do on the Web, then design an interface to the legacy system that supports the functions you want.
Using the encapsulation techniques you learned in Chapter 32, you create an object that both interacts with the legacy system and presents a nice Java front-end to it.
Typical Web accesses are session-less. In other words, each time you access a document on the Web server, or post data to it, you set up a new connection to the server. From the Web server's point of view, this means that it never knows when a particular user is going to send another message.
In a session-oriented system, there is a distinct session initiation, an exchange of messages, and a session shutdown. The nice thing about session-oriented transactions is that you don't have to do everything at once. For instance, if you are booking a number of flights on an airline, you can try to book the first flight. If that succeeds, you book the second flight. If the first flight is full, you can try an alternate. Once you have selected the flights you want, you finish the transaction and everything is saved. You could also abort the transaction, canceling all your reservations automatically.
You can't do this kind of thing with session-less transactions. You have to do everything you want at one time. For instance, you would try to book your whole flight itinerary. If it failed for some reason, you'd make adjustments and try the whole thing again. This is generally less convenient for you but more convenient for the server.
If your legacy system already supports a session-less transaction system, you don't really have to do anything. If not, you can use encapsulation to fake it. When your Web server receives a request and invokes a method in your encapsulation, the encapsulation performs all the steps required to complete the transaction. In other words, it establishes a session, exchanges information with the legacy system, then finishes the transaction.
Sometimes, you want to keep the session-oriented transaction protocol, either because it is convenient or because you have no choice. In these situations, your Web server needs to be able to take an incoming request and determine which session it belongs to.
The easiest way to do this is to store a session identifier on
the Web page in a hidden variable. Whenever you process a request,
you look for this hidden variable. If it isn't there, you can
assume that it's a new session. You associate this session identifier
with whatever data you need to keep for your session with the
legacy system. Typically, you would store the session identifier
in a hash table.
| Note |
In order to keep a session going like this, you cannot use CGI. A CGI program would terminate after each request, taking down the session with the legacy system. The Java Servlet API is very well-suited for this kind of task, however. |
From the time a client first initiates a session, the sequence would go like this:
Listing 33.1 shows a servlet that uses a simple sequence number for a session ID. It uses a text field to build up a string of text. Anytime text is entered in the field, it appends the text to the current session text. It also provides a checkbox to signal that the transaction is complete.
Listing 33.1 Source Code for SessionServlet.java
import java.io.*;
import java.util.*;
import java.servlet.*;
import sun.server.html.*;
// This servlet uses hidden variables to keep track of
// a session. When it starts a new session, it sets a
// hidden sessionId variable in the web page. Whenever
// the 'submit' button is clicked, the hidden sessionId
// is transmitted to the servlet.
public class SessionServlet extends Servlet
{
// The sessions table maps session id's to session information. For
// this example, the session information is just a string containing
// the text added during the session.
protected Hashtable sessions;
// Just for demonstration purposes, we use a simple integer
// variable for generating session id's.
protected int nextSessionNumber;
public void init()
{
nextSessionNumber = 0;
sessions = new Hashtable();
}
// Start new session is called when a request comes in that
// does not contain a session id. This routine should generate
// a new session id and perform the necessary session setup.
protected String startNewSession()
{
// Generate a new session id
String sessionId = ""+nextSessionNumber++;
// Set up the session information in the session table (start
// with an empty string).
setSessionInfo(sessionId, "");
return sessionId;
}
// getSessionInfo returns the information associated with
// a session - in this case, the information string.
protected String getSessionInfo(String sessionId)
{
return (String) sessions.get(sessionId);
}
// setSessionInfo stores session-related information in the
// sessions table.
protected void setSessionInfo(String sessionId, String info)
{
sessions.put(sessionId, info);
}
// finishSession is called to complete a transaction and close
// down the session.
protected void finishSession(String sessionId)
{
sessions.remove(sessionId);
}
public void service(ServletRequest req, ServletResponse resp)
{
boolean isNewSession = false;
boolean isExpired = false;
boolean isFinished = false;
// get a table of variables from the web page
Hashtable params = req.getQueryParameters();
// get the session id from the page
String sessionId = (String) params.get("sessionId");
// if there was no session id, start up a new session
if (sessionId == null) {
sessionId = startNewSession();
isNewSession = true;
}
// get the session info for this session
String sessionInfo = getSessionInfo(sessionId);
// if there was no session info, it must be an old/invalid session id
if (sessionInfo == null) {
isExpired = true;
}
// get the text item to be added to the session information
String newStuff = (String) params.get("item");
// if there is text in the "item" field and the session id
// isn't expired, add the item to the session info and save it.
if (!isExpired && (newStuff != null)) {
sessionInfo += newStuff + "\n";
setSessionInfo(sessionId, sessionInfo);
}
// See if the "finished" flag was checked
String finishedFlag = (String) params.get("finished");
isFinished = (finishedFlag != null) &&
finishedFlag.equals("on");
// Start generating the response
resp.setContentType("text/html");
try {
resp.writeHeaders();
} catch (IOException e) {
e.printStackTrace();
return;
}
// Create a response page
HtmlPage page = new HtmlPage("Session-Oriented Service");
// We always respond with a form of some kind, the action
page.addText("<FORM action=\"/servlet/SessionServlet\">");
// If the transaction isn't finished, and the session id hasn't
// expired, generate a form for entering text, including the
// hidden session id, and a checkbox for signalling the last
// entry in the transaction.
if (!isFinished && !isExpired) {
// Add the hidden sessionId field
page.addText("<INPUT type=\"hidden\""+
" name=\"sessionId\""+
" value=\""+sessionId+"\">");
// Print out the current session info
page.addText("<P>Current transaction text:<P>");
page.addText(sessionInfo+"<P>");
// Create the field for adding new text
page.addText("<P>New text to add: ");
page.addText("<INPUT type=\"text\" name=\"item\">");
// Create the checkbox for signalling the end of the transaction
page.addText("<P>Check here when finished: ");
page.addText("<INPUT type=\"checkbox\""+
" name=\"finished\">");
// Create the submit buttin
page.addText("<P>");
page.addText("<INPUT type=\"submit\">");
// If this is a new session, let the user know
if (isNewSession) {
page.addText("<P>Congratulations, you've started a "+
"new session!<P>");
}
// If the "finished" box was checked, finish the session and
// create a simple form to start another transaction
} else if (isFinished) {
// Close down the session
finishSession(sessionId);
page.addText("<P>Your transaction is completed.<P>");
page.addText("<P>Press 'Submit' to start another.<P>");
page.addText("<INPUT type=\"submit\">");
// If the session id had expired, print a message about it and create
// a button to start another transaction.
} else if (isExpired) {
page.addText("<P>Uh oh! Your session has expired!");
page.addText("<P>Press 'Submit' to start another.<P>");
page.addText("<INPUT type=\"submit\">");
}
// Finish off the form
page.addText("</FORM>");
// Write the HTML page to the response output stream
try {
page.write(resp.getOutputStream());
} catch (IOException e) {
e.printStackTrace();
}
}
}

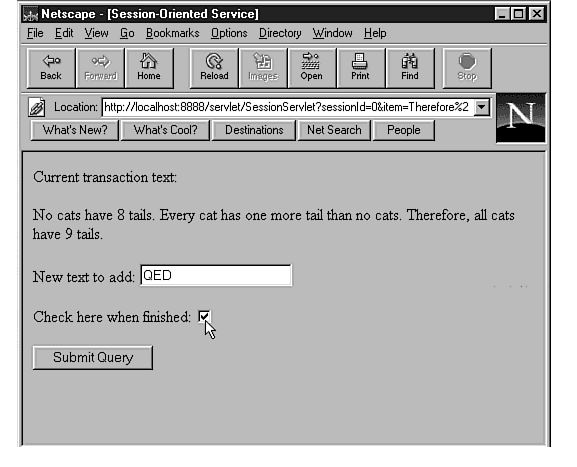

Figure 33.1 shows the output from the SessionServlet servlet.
Figure 33.1 : You can maintain a session ID using a hidden variable.
One of the ugly parts of hidden variables is that they show up as part of the URL. If your browser shows the current location, you can see the session ID embedded within the URL. Aside from a security risk, which will be discussed shortly, the hidden variable causes unnecessary clutter in the URL.
The cookie protocol provides a nice alternative to hidden variables. Actually, cookies are intended more for permanent information. In other words, cookies were intended to be saved by the browser and used every time you run the browser. If you don't give a cookie an expiration date, however, the browser doesn't save it to disk. The cookie disappears when you exit the browser.
The only sticky point is that there is not a clean way to erase a cookie. In the case of a session, you want to erase the session cookie when the session is terminated. You can kludge around the lack of an erase mechanism by setting the session ID to some phony value like "erased." Whenever the session ID cookie has a value of "erased," treat it as though it were null.
Jeeves has a built-in cookie class, making it very easy to parse cookies and generate them. All you have to do, in order to use cookies instead of hidden variables, is change the way you read and write the information.
For instance, in the previous example, you read the session ID by saying:
Hashtable params = req.getQueryParameters();
String sessionId = (String) params.get("sessionId");
To use a cookie instead, you have to use a few more lines. You must first get the cookie string from the header:
// get the cookie value(s)
String cookieStr = req.getHeader("Cookie");
Then, if there were a cookie string, you must extract the sessionId cookie:
Cookie cookie = null;
String sessionId = null;
// If there was a cookie string, convert it to a cookie object
// and then fetch the sessionId value
if (cookieStr != null) {
cookie = new Cookie(cookieStr);
sessionId = cookie.getValues("sessionId");
// Netscape doesn't seem to like to erase a cookie while it's still
// running, so we hack around it by creating a session id of "erased"
if ((sessionId != null) &&
sessionId.equals("erased")) {
sessionId = null;
}
}
Unlike the hidden variable example, you still have to write out cookie information when the session ID has expired or you have finished the transaction. As you now know, you can't simply erase a cookie, so we have a special kludge to handle erasing the cookie:
// If we need to write out a session id, create a cookie and
// write it out.
if (!isFinished && !isExpired) {
cookie = new Cookie("sessionId", sessionId);
cookie.setPath("/servlet/SessionCookie");
resp.setHeader("Set-Cookie", cookie.toString());
} else {
// If expired or finished, set the sessionId to "erased"
cookie = new Cookie("sessionId", "erased");
cookie.setPath("/servlet/SessionCookie");
resp.setHeader("Set-Cookie", cookie.toString());
}
If you are concerned about security (and you should be), you need to be very careful when creating a session identifier. The technique used in the preceding example, where you just use a sequential numbering system, is completely unacceptable.
The reason you need to be careful with the session identifier is that someone could come along and take over someone else's session if they could guess the session identifier. Even though there are 4 billion possible identifiers in a 32-bit number, you can figure out where the current count is by setting up your own session and seeing what session ID you have been assigned. Then you could guess in the neighborhood of that session ID number.
Don't think that cookies prevent this, either. Just because you can't see the cookie from the browser doesn't mean that someone couldn't write a program that establishes a session and prints out the cookie value it was given. You could use the cookie code in Chapter 6 "Communicating with a Web Server," to do that.
As you've heard so many times, you have to start with secure communications. You have to ensure that no one can spy on another user and figure out their session ID. Once someone gets the session ID, it's all over. They can take over someone else's session. Next, you need to generate a reasonable session ID. Actually, a random session key that you might generate for secure private key communications would work in this situation. When you generate the session ID, you need to check your session ID table to make sure that you haven't chosen an ID that is already in use.
One of the difficulties in trying to maintain a session in a session-less world is that the server never knows when a client has decided it doesn't want to talk anymore. Obviously, a client is going to tell you whether it wants to abort a transaction, or end one. But what do you do if the client completely forgets about you?
For instance, the client browser could crash and lose the session key. You probably don't have a good way to recover the key, especially since any such mechanism would make you vulnerable to impersonations. At some point, your service must decide that a client session is never going to complete.
The simplest way to age out old sessions is to store the last access time somewhere in your session information. Then, at periodic intervals, a background thread goes through the entire table of sessions and removes every session that has not been accessed within a certain time period.
The only thing you have to do in this case is figure out what a reasonable time period is. It might be 15 minutes, it might be an hour, it might be a week. The timeout period depends on the kind of interaction people do with your server. Generally, give your users more than a reasonable amount of time to perform their transactions. If a normal transaction is five minutes, maybe you should give them an hour or more. If it takes an hour, give them a day.
Hopefully, you have been creating your legacy system encapsulations in Java, or at least designed them to be Java-friendly. If this is the case, you can use Java servlets to quickly put your legacy system out on the Web.
Conceptually, you have a servlet running in a Java Web server that communicates with your legacy system encapsulation, which, in turn, talks to your legacy system. Figure 33.2 illustrates this relationship.
Figure 33.2 : Web access to legacy system involves a servlet and an encapsulation.
One of the things that makes system design so interesting is the number of ways you can implement a system. The trick, of course, is choosing the best way, or at least striking a good balance, between the different factors that affect performance and maintainability.

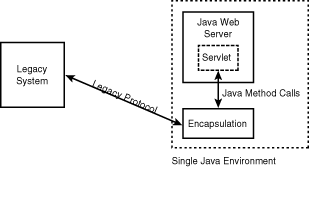

The most basic way to access legacy data from a servlet is to have the servlet and the legacy encapsulation code running in the same Java environment. Figure 33.3 illustrates this configuration.
This configuration can support all the different types of encapsulations from Chapter 32. For example, you can invoke methods on an encapsulation that uses native methods. Listing 33.2 shows an extremely basic servlet that invokes the listParts native method in the Ordering class from Chapter 32.
Listing 33.2 Source Code for NativeServlet.java
import java.io.*;
import java.util.*;
import java.servlet.*;
import sun.server.html.*;
// This servlet displays a list of parts from the ordering
// system. It shows that a servlet can invoke native methods.
public class NativeServlet extends Servlet
{
public void init()
{
// Load the native library
System.load("ORDERING.dll");
}
public void service(ServletRequest req, ServletResponse resp)
{
// Start generating the response
resp.setContentType("text/html");
try {
resp.writeHeaders();
} catch (IOException e) {
e.printStackTrace();
return;
}
// Create a response page
HtmlPage page = new HtmlPage("Native Encapsulation Service");
try {
// Get the list of parts from the "legacy system"
String[] parts = ordering.Ordering.listParts();
// Display the parts list
for (int i=0; i < parts.length; i++) {
page.addText(parts[i]+"<P>");
}
} catch (Exception e) {
page.addText(e.toString());
}
// Write the HTML page to the response output stream
try {
page.write(resp.getOutputStream());
} catch (IOException e) {
e.printStackTrace();
}
}
}

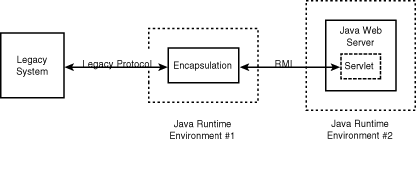

You don't have to restrict the servlet from running in the same Java environment as the legacy system encapsulation, however. You can use CORBA, RMI, or even TCP/IP to link the servlet to the encapsulation. Figure 33.4 shows an example configuration using RMI.
Figure 33.4 : A servlet can use RMI to access a legacy system encapsulation.
Listing 33.3 shows a banking servlet that retrieves an account balance from the banking service in Chapter 16, "Creating 3-Tier Distributed Applications with RMI."
Listing 33.3 Source Code for BankBalance.java
import java.io.*;
import java.util.*;
import java.servlet.*;
import sun.server.html.*;
import java.rmi.server.StubSecurityManager;
import java.rmi.Naming;
import banking.*;
// This servlet displays a bank balance using RMI to invoke methods
// on the banking service.
public class BankBalance extends Servlet
{
public void init()
{
// Set the security manager for RMI
System.setSecurityManager(new StubSecurityManager());
}
public void service(ServletRequest req, ServletResponse resp)
{
// Start generating the response
resp.setContentType("text/html");
try {
resp.writeHeaders();
} catch (IOException e) {
e.printStackTrace();
return;
}
HtmlPage page = new HtmlPage("Banking Service");
Account myAccount = new Account(
"AA1234", "1017", Account.CHECKING);
try {
// Get a stub for the BankingImpl object (the stub implements the
// Banking interface).
Banking bank = (Banking)Naming.lookup("NetBank");
// Check the initial balance
page.addText("<P>My balance is: "+
bank.getBalance(myAccount)+"<P>");
} catch (Exception e) {
page.addText(e.toString());
}
// Create a response page
// Write the HTML page to the response output stream
try {
page.write(resp.getOutputStream());
} catch (IOException e) {
e.printStackTrace();
}
}
}
Servlets are a big advantage over CGI when you need to do session-oriented transactions with a legacy system. Servlets stick around between requests, so the sessions with the legacy system are preserved for the next time. You already have a framework for tracking these sessions; all you need to do is put it together with your legacy system encapsulation and you're ready to hit the Web.
